Jets
Part#

Description

Application Price
C4AJ-xxx

AFB Style
Main Jets
Primary & Secondary


9.98 Pair

Quant
16-xxxx

AFB,Carter & Edelbrock Metering Rods

16.98 Pair


Quant

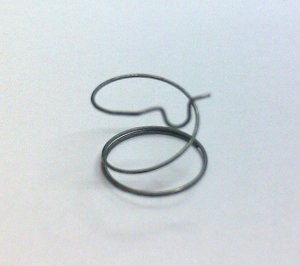

Springs


Springs for AFB/Carter 4
Gaskets
.  Gasket C4

Gaskets for AFB/Carter/Edelbrock
Rods & Linkage

Rods and Linkage AFB/Carter/Edelbrock
Pulloffs


Carter 4 Pulloff
Needle and Seats


Needle and Seats
Floats


Floats
Acc Pumps


Acc Pump
Screw

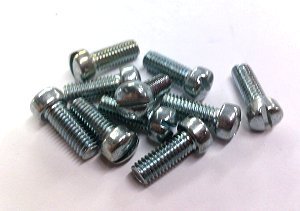

Sloted Fillister Head Screw 6-32 x 3/8

Screws

Clips & Ball
Fuel Fittings

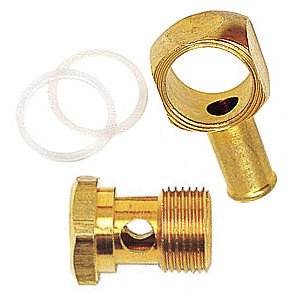

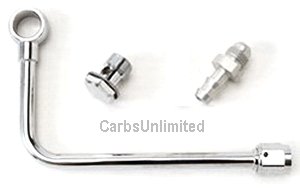

SINGLE FEED FUEL INLET (Edelbrock)3/8 Banjo Fuel Fitting

Fuel Fittings for AFB/Carter/Edelbrock
Misc

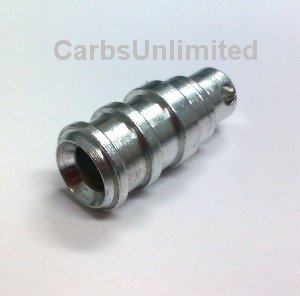

Metering Rod Piston AFB

Misc for AFB/Carter/Edelbrock
Chokes


Chokes for AFB/Carter/Edelbrock
Diagrams
Free Edelbrock Users manual Edelbrocks web site

Edelbrock CARBURETOR SPECIFICATIONS

Carb CFM Main Jets Sec Jets Metering Rods Spring Float Height Float Drop
1403 500 .086" .095" .065" x .052" orange (5") 7/16" 1-1/4"
1404 500 .086" .095" .065" x .052" orange (5") 7/16" 1-1/4"
1405 600 .100" .095" .070" x. 047" orange (5") 7/16" 1-1/4"
1406 600 .098" .095" .075" x .047" yellow (4") 7/16" 1-1/4"
1407 750 .113" .107" .071" x .047" orange (5") 7/16" 1-1/4"
1409 600 .098" .101" .068" x .047" orange (5") 7/16" 1-1/4"
1410 750 .113" .107" .071" x .047" orange (5") 7/16" 1-1/4"
1411 750 .110" .107" .075" x .047" orange (5") 7/16" 1-1/4"
1412 800 .113" .101" .071" x .047" orange (5") 7/16" 1-1/4"
1413 800 .113" .101" .071" x .047" orange (5") 7/16" 1-1/4"


Carter#
Economy Step Power Step

16-690 16-690 0.0745 0.047

16P-241 16-241 0.0705 0.0475

16P-442 16-442 0.056 0.048

16P-118 16-118 0.06 0.049

16P-121 16-121 0.0615 0.05

16P-243 16-243 0.071 0.05

16P-485 16-485 0.065 0.052

16P-543 16-543 0.069 0.054

16-691 16-691 0.076 0.055

16-98 16-98 0.068 0.0555

16P-330 16-330 0.068 0.057

16P-328 16-328 0.069 0.058

16-544 16-544 0.0715 0.058

16-388 16-388 0.073 0.06

16P-136 16-136 0.071 0.061

16P-270 16-270 0.072 0.062

16P-225 16-225 0.073 0.063

16P-227 16-227 0.074 0.065

16P-555 16-555 0.076 0.065













120P-368 0.068



120P-371 0.071



120P-374 0.074



120P-377 0.077



120P-380 0.08



120P-383 0.083



120P-386 0.086



120P-389 0.089



120P-392 0.092



120P-395 0.095



120P-398 0.098



120P-401 0.101



120P-404 0.104



120P-407 0.107



120P-410 0.11



120P-413 0.113









DIFF. REF EDL# Ref Carter# LEAN RICH diff
0 1436
0.055 0.055 0
0.003 1440
0.06 0.057 1
0.006 1438
0.058 0.052 2
0.008 1461
0.065 0.057 2.7
0.008 1439
0.06 0.052 2.7
0.008 1437
0.057 0.049 2.7
0.01 1441
0.062 0.052 3.3
0.012 1463
0.067 0.055 4
0.013
16-98 0.068 0.056 4.2
0.013
16-388 0.073 0.06 4.3
0.013
16-485 0.065 0.052 4.3
0.013 1460
0.065 0.052 4.3
0.014
16-544 0.072 0.058 4.5
0.016 1443
0.063 0.047 5.3
0.016 1448
0.068 0.052 5.3
0.018 1452
0.07 0.052 6
0.018 1462
0.067 0.049 6
0.018 6547
0.066 0.048 6
0.018 1445
0.065 0.047 6
0.018 1455
0.065 0.047 6
0.021 1457
0.073 0.052 7
0.021
16-691 0.076 0.055 7
0.021 1447
0.068 0.047 7
0.023
16-241 0.071 0.048 7.7
0.023 1451
0.07 0.047 7.7
0.024 1453
0.071 0.047 8
0.026 1456
0.073 0.047 8.7
0.026 1446
0.068 0.042 8.7
0.026 1442
0.063 0.037 8.7
0.028 1459 16-390 0.075 0.047 9.3
0.028 1450
0.07 0.042 9.3
0.028 1444
0.065 0.037 9.3
0.033 1449
0.07 0.037 11
0.036 1454
0.073 0.037 12
0.038 1458
0.075 0.037 12.7
