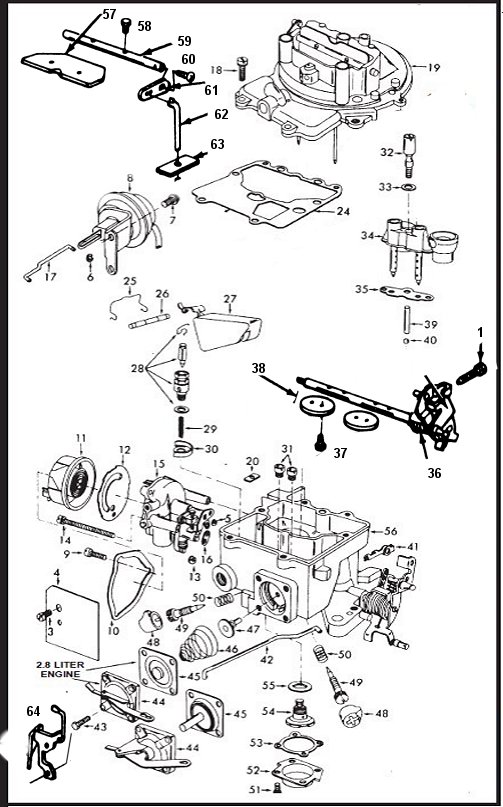

Motorcfraft 2bbl 2150 Parts Page

Ford 2bbl Parts Page	2100 early
	2100 late

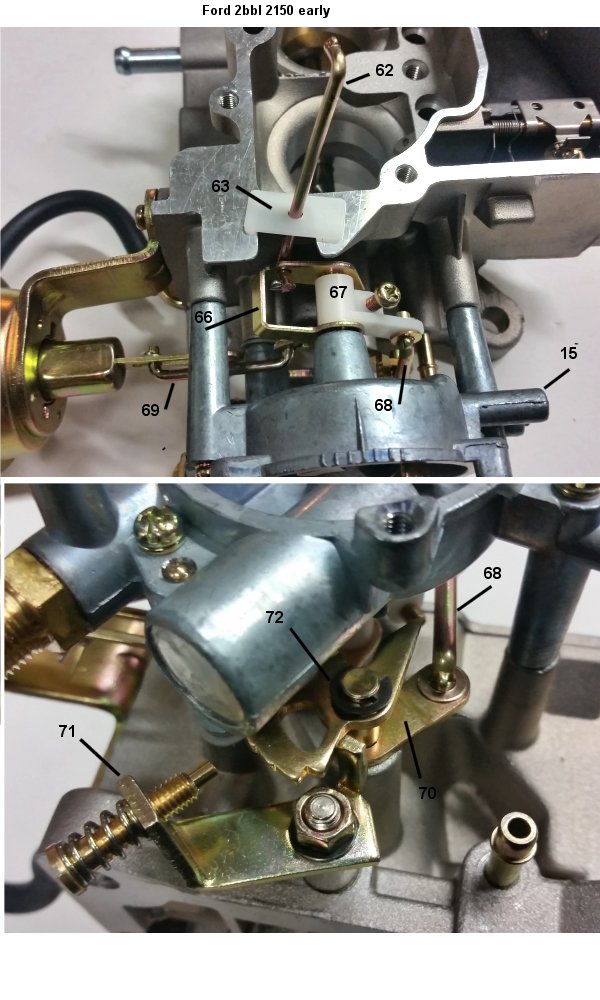

Description	2150 early Motorcraft 2bbl
1- Screw - Kick down
2- Idle Screw with spring
3- Screw - Air Shield
4- Air Shield
5-
6- Clip - pull off rod
7- Bolt - Pull off
8- Pull off
9- Screw - Choke
10- Hot air choke hold down
11- Hot air Choke
12- Gasket - choke
13-
14- Bolt long choke hold down
15- Choke housing complete
16- Gasket - housing
17- Rod - Choke pull off
18- Screw - Bowl cover
19- Bowl top cover
20- Seal - choke rod
21-
22-
23-
24- Gasket - Bowl cover
25- Float retainer
26- Float pin
27- Float
28- Needle and seat
29- Screen - needle and seat
30- Gasket shield - Needle and seat
31- Jets
32- Screw - pump discharge nozzle
33- Gasket - discharge nozzle
34- Venturi
35- gasket - venturi
36- Throttle shaft
37- Screw - Butterfly
38- Butterfly
39- Check ball weight
40- Check ball
41- Clip acc pump rod
42- Acc pump rod
43- Screw - acc pump cover
44- Acc pump cover
45- Acc pump
46- Spring - Acc pump
47- Acc pump check valve
48- Limiter cap
49- Screw - Mixture
50- Spring - mixture screw
51- Screw - power valve cover
52- Power valve cover tall
53- Gasket - power valve cover
54- Power valve
55- Gasket - powervalve
56-
57- Choke Plate
58- Screw - choke plate
59- Choke shaft
60- screw - Choke plate lever
61- Choke shaft lever
62- Choke rod
63- Choke seal
64- Vent spring lever rod
65- Idle screw and spring
66- Choke upper cage
67- Overtravel cam
68- Rod - Overtravel arm
69- Pull off rod
70- Choke lower cage
71- Fast idle lever and spring
72- Clip - lower cage
73-

	Most are availible Used or refurbished Call 253-833-4106 for quote
