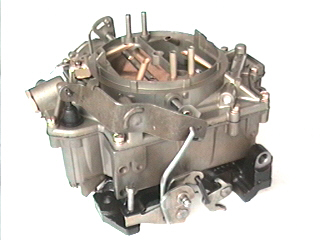

Rochester 4Jet 4G 4GC Parts

Rochester 4GC 4G 4GC 4Jet Parts
Chokes , Floats , Kits , Rebuilt Carbs , New Carbs
Primary Pulloffs
 , Secondary Pulloffs
Part#

Description

Application Order
Jets
R2/4J-(jet size)

9.98 Pair



Quant

Rebuild Kits
Rochester
4G 4GC
Rebuild kits
Rochester 4GC 4Jet Rebuild Kit Rebuild Kits

Kits by Application


CU2138B


$ 65.95

4GC Brass Float
Rochester ( some secondary floats have a notch on the bottom of float these will not replace those )

66-37


$ 2.79

Fuel Filter Spring
Quadrajet WCFB 4Jet R-2 Varajet R1

66-15


$ 3.59

Pump Return Spring


66-16


$ 2.59

Pump Discharge Spring


16-28


$ 9.95

Idle Screw - (pair)
10-32 x 1.6 - 4GC / 4100

CUD2172


$ 12.95

Mixture Screw - Roch. 2 & 4 bbl (Pair)
10-32 x1.3

NS-31-523


$ 10.95

Needle & Seat - R-2 4GC
Small Rochester 2 / 4GC R1 - .101 orifice

80-5-10


$ 9.95

Screw quant (Pack of 10)
Choke and Throttle Plate 6-32 x 5/16 - Ref# 1005-4

75-22


$ 7.95

Fast Idle Cam Step Screw
12-28 threads

22-124


$ 5

Bushing 5/16 (pair)
Knureled Brass - Fits 5/16th shafts (Primary)

CU22-83


$ 5

Bushing 3/8 (pair)
Knureled Brass

CUD4343


$ 14.95

4GC Acc Pump Assembly 5/8 (21/32) Rubber Cup
Ethanol resistant - 2 1/2 extended

CUD4344


$ 14.95

4GC Acc Pump Assembly 5/8 (21/32) Rubber Cup
Ethanol resistant - 2 5/8 extended

CUD4345


$ 14.95

4GC Acc Pump Assembly 3/4 in Rubber Cup
Ethanol resistant - 2 3/8 extended

CUD4346


$ 14.95

4GC Acc Pump Assembly 3/4 in Rubber Cup
Ethanol resistant - 2 1/4 extended

G622


$ 2.5

Throttle Rubber Grommet
Quadrajet 4GC

CU22-17


$ 2.5

Throttle Lever Bushing


CUD4196


$ 3.99

Rubber Accelerator Boot 4GC
bottom boot dia .068

90-155


$ 12.5

Fuel Fitting 7/8 20 to 1/2 20
Comes with gasket - 5/16 fuel line

CUD2178


$ 10.95

Fuel Inlet 5/8-1/2 20 Reducer


40-2


$ 5.25

Plastic Hot air Choke Cap
2 1/8

CUD2168


$ 9.95

Choke Spring


CUD2182


$ 2.59

Idle Mixture Screw Spring (pair)
.590 Length

CUD3741


$ 4.99

Gasket - Base WCFB 4GC


G390


$ 4.99

Gasket 4GC Base
4GC AFB

G402


$ 4.95

Flange Gasket


CUD3872


$ 6.99

Accelerator Pump 3/4 cup


CUD4197


$ 0.49

Pump discharge Spring T


CUD4198


$ 3.95

Pump discharge check Needle
.715 long use in (7/32) .2188 hole

85-59


$ 0.49

Pump discharge Spring T


CUD4250


$ 2.95

Fuel Inlet Strainer 27/64 ID
.560 length screen

CUD4251


$ 2.95

Fuel Inlet Strainer 5/8 ID
.870 length

CUD114


$ 2.99

Gasket - Air Ring
Holley 2 - small Carter AFB - Rochester 4GC 4jet

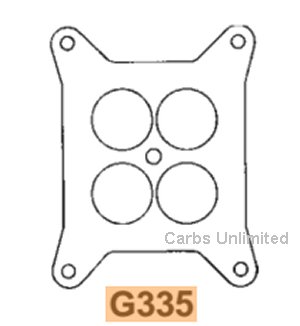

G335


$ 0

Gasket WCFB Base


CUD4535


$ 12.95

Power valve assembly
Rochester 2 R2 4GC thread size 5/16 x 24 - price each 1 per carb

G325


$ 4.99

Throttle Body Gasket
Rochester 4 jet 1/32 thick

552A


$ 10.95

Needle & Seat - Rochester
Rochester 2bbl 4GC - .119 orifice

CUD15079


$ 21.95

4G 4GC throttle connecting lever
can replace the one with the slot in it to make return to idle better

G530


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4

G664


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4 small bore

G374


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4 Large bore

G975


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4 Jet

G524


$ 4.99

Throttle Body Gasket
1/16 thick Rochester 4

G179


$ 4.99

Air Horn 4GC


G443


$ 0

Air Horn 4GC


G426


$ 4.99

Air Horn 4GC


G403


$ 0

Air Horn 4GC


G221


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4 Jet

G445


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4 Jet

G688


$ 4.99

Throttle Body Gasket
1/32 thick Rochester 4 Jet

G373


$ 4.95

Flange Gasket


CUD5800


$ 12.5

Fuel Fitting 7/8 20 to 5/8 18
Comes with gasket - Uses 3/8 fuel line

G576


$ 2.29

Venturi Gasket
4 GC
