Carburetor Reference Sheet and Related Parts
|
|||
| Brand: Carter | Type:
R4-4MV Quadrajet Qjet |
Number: 6170S |
CU: 4-75 |
|

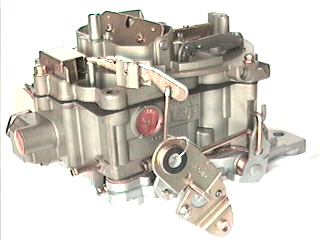

General Reference Picture of a
R4-4MV
|

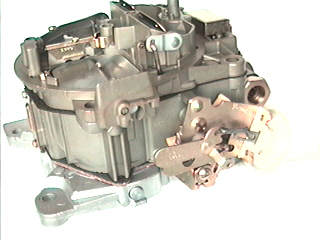

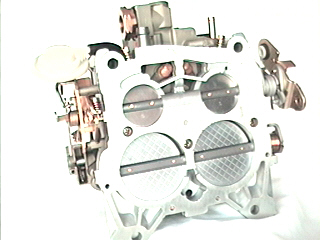

Actual Reference Picture |
||
| Disc: 65-66 Chevy 396 427 | Notes: Notes | ||
| Cyl: | Newcarb- | ||
| Rebuild Kit: | KT-5150B | ||
| Float: | FLT-100-7 | Acc Pump: | 82 |
| Choke Pulloff Front: | PO-5131P | Acc Pump Cup: | |
| Choke Pulloff Rear: | Needle & Seat: | 545 | |
| Choke Thermostat: | TO-9015 | PowerValve: | |
| Jets: | Jets | ||
| Mixture Control Solinoid: | Mettering Rods: | ||
| Throttle Position Sensor: | Linkage Rods: | ||
| Fuel Fitting: FuelFilter: |
Mixture Screw: | ||
| Air Cleaner Gasket: |
Rebuilt Carburetor Ref Numbers |
||
| Bowl Gasket: | Rebuild Ref Number: | 4-75 | |
| Middle Gasket: | |||
| Base Gasket: | 25220-2662471 | Core: | <<Core>> Search eBay |
|
Check the Carter Parts Page for more parts |
|||
|
|
|
||
| This carburetor was made by Carter , The Carter Carburetor Company started in 1909 till 1922 . In 1922 the American Car and Foundry manufactured the carburetor till 1984 .Federal Mogul made them till the early 1990s . It is a R4-4MV the 4MV is a divorce choke (remote choke) Rochester Quadrajet 4 barrel carburetor which means the choke is located on the intake manifold connected to the carburetor with a choke rod .They started making them in 1965 and ran threw 1974 trucks up to 1979. Most will have 7/8 inch 20 fuel inlet till 1971 and 1 inch 20 after . This carburetor has a part number of 6170S and used on 65-66 Chevy 396 427 . Check here for specific Muscle car Info |
| Referenced by ; Carter 6170S |
