Carburetor Reference Sheet and Related Parts
|
|||
| Brand: Rochester | Type:
R4-4MV Quadrajet Qjet |
Number: 7046908 |
CU: 4-432 |
|

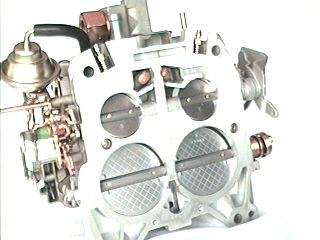

General Reference Picture of a
R4-4MV
|

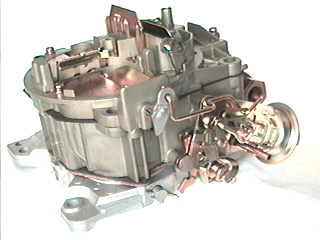

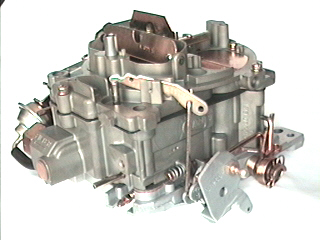

Actual Reference Picture |
||
| Disc: 72 Chevy Chevy/GMC Truck 402 454 | Notes: Notes | ||
| Cyl: | Newcarb- | ||
| Rebuild Kit: | KT-5186C | ||
| Float: | FLT-100-7 | Acc Pump: | 185 |
| Choke Pulloff Front: | PO-5040 | Acc Pump Cup: | |
| Choke Pulloff Rear: | Needle & Seat: | N/S-31-542 | |
| Choke Thermostat: | PowerValve: | ||
| Jets: | Jets | ||
| Mixture Control Solinoid: | Mettering Rods: | ||
| Throttle Position Sensor: | Linkage Rods: | ||
| Fuel Fitting: FuelFilter: |
Mixture Screw: | ||
| Air Cleaner Gasket: |
Rebuilt Carburetor Ref Numbers |
||
| Bowl Gasket: | Rebuild Ref Number: | 4-432 | |
| Middle Gasket: | |||
| Base Gasket: | G796G581 | Core: | <<Core>> Search eBay |
|
Check the Rochester Parts Page for more parts |
|||
|
|
|
||
| This carburetor was made by Rochester , The Rochester Products Division of General Motors was located in Rochester New York and built carburetors for GM vehicles since 1949 . It is a R4-4MV the 4MV is a divorce choke (remote choke) Rochester Quadrajet 4 barrel carburetor which means the choke is located on the intake manifold connected to the carburetor with a choke rod .They started making them in 1965 and ran threw 1974 trucks up to 1979. Most will have 7/8 inch 20 fuel inlet till 1971 and 1 inch 20 after . This carburetor has a part number of 7046908 and used on 72 Chevy Chevy/GMC Truck 402 454 . Check here for specific Muscle car Info |
| Referenced by ; Rochester 7046908 |
