Carburetor Reference Sheet and Related Parts
|
|||
| Brand: MARVEL-SCHEBLER | Type:
MS1-TSX |
Number: TSX-815 (234228) |
CU: TSX-815 |
|

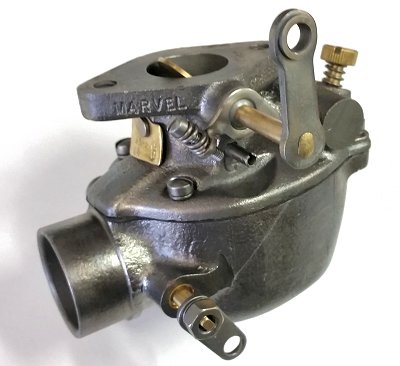

General Reference Picture of a
MS1-TSX
|

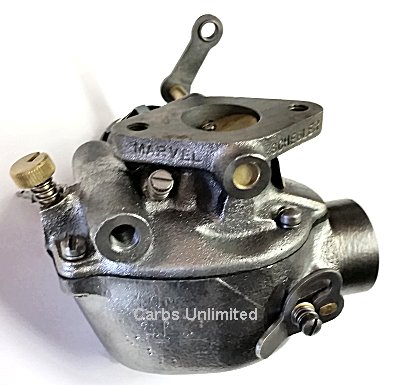

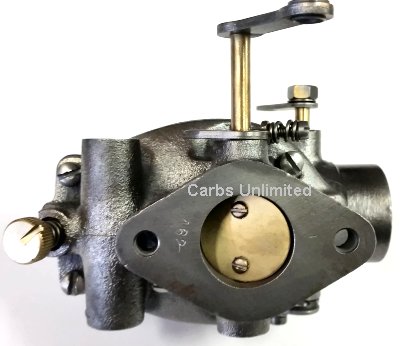

Actual Reference Picture |
||
| Disc: 61-63 Allis Chalmers | Notes: Tractor CA D14 D15 / Crawler T-102 H-3 - 2 5/16 mounting | ||
| Cyl:Small Body | Newcarb- | Z12566 | |
| Rebuild Kit: | KT-5356KT-M505-0074 | ||
| Float: | CUF036 | Acc Pump: | |
| Choke Pulloff Front: | Acc Pump Cup: | ||
| Choke Pulloff Rear: | Needle & Seat: | CUD4604 | |
| Choke Thermostat: | PowerValve: | ||
| Jets: | Jets | ||
| Mixture Control Solinoid: | Mettering Rods: | ||
| Throttle Position Sensor: | Linkage Rods: | ||
| Fuel Fitting: FuelFilter: |
Mixture Screw: | 43-33 | |
| Air Cleaner Gasket: |
Rebuilt Carburetor Ref Numbers |
||
| Bowl Gasket: | CUD4593 | Rebuild Ref Number: | TSX-815 |
| Middle Gasket: | |||
| Base Gasket: | CUD4599 | Core: | <<Core>> Search eBay |
|
Check the MARVEL-SCHEBLER Parts Page for more parts |
|||
|
|
|
||
| This carburetor was made by MARVEL-SCHEBLER , The Marvel-Schebler was started by George Schebler first patended in 1902 . In 1912 George sold his interests in the company by 1928 it was Marvel Schebler Carburetor Co witch turned into part of Borg Warner Corp . Then sold to Facet in 1980s . It is a MS1-TSX . This carburetor has a part number of TSX-815 (234228) and used on 61-63 Allis Chalmers . Check here for specific Muscle car Info |
| Referenced by ; MARVEL-SCHEBLER TSX-815 (234228) |
