1. DRLA 36 Venturi/Choke
|
DEL10074.xx (36mm)
|
|
2. DRLA 40 Venturi/Choke
|
DEL10527.xx (26-36mm) (42mm
x 35mm tall)
|
|
3. DRLA 45 Venturi/Choke
|
DEL10758.xx (34-39mm) (42mm
x 35mm tall)
|
|
4. DRLA 40 Auxiliary venturi
|
10078.1 (Round style)
|
|
4. DRLA 40 Auxiliary venturi
|
12189 (2 stand style)
|
|
5. DRLA Pump jet
|
DEL7851.xx (30-90)
|
|
6. DRLA Starter jet
|
DEL3315.xx (48-105)
|
|
7. DRLA Emulsion tube
|
DEL9164.x (1-4)
|
|

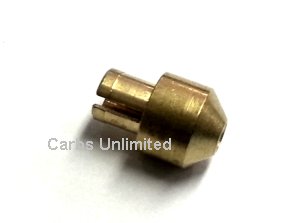

8. DRLA Starter Emulsion tube
|
DEL7482 .x (1-4)
|
|

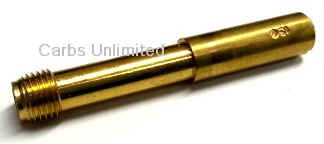

9. DRLA Air corrector (long)
|
DEL10304.xxx
|
|
10. Needle valve and seat 150 - 225
|
DEL10375.xxx
DEL8809.xxx |
|
10. Needle valve and seat 250-400
|
DEL8649.xxx
|
|
11. Throttle butterfly disc 36mm
|
DEL10133
|
|
11. Throttle butterfly disc 40mm
|
DEL7481 get # off old one
|
|
11. Throttle butterfly disc 45mm
|
DEL8010.1
|
|
11. Throttle butterfly disc 48mm
|
DEL8563 get # off old one
|
|
12. DRLA Float
|
CUFDRLA
|
|
13.
|
|
|
14.DRLA Banjo bolt 11mm head (small)
|
DEL10132
|
|
15. DRLA Banjo bolt seal
|
83102.100
|
|

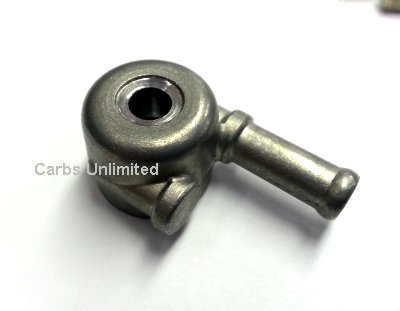

16. DRLA Single fuel banjo (11mm bolt)
|
DEL11067
|
|

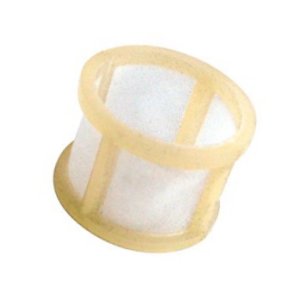

17. Early banjo filter (11mm bolt)
|
DEL1419
|
|
18. DRLA Banjo seal
|
DEL7662
|
|
19. Screw
|
DEL14231
|
|
20. Spring washer
|
DEL4957
|
|
21. DRLA Top cover casting
|
|
|
22. DRLA Top casting gasket - for 36s
and early 40s
|
DEL10092
|
|
22. DRLA top casting gasket - late 40
& all 45
|
DEL10528
|
|
22. DRLA Top casting gasket -
48s
|
DEL12031
|
|
23. Needle valve fibre washer
|
DEL6288
|
|
24. DRLA Float pivot screw
|
DEL10154
|
|
25. DRLA Float screw circlip
|
DEL8498
|
|
26. DRLA
Float hinge screw
|
DEL10339
|
|
27. DRLA Idle
jet holder
|
DEL10738
|
|
28. O ring
|
DEL7540
|
|
29. Pump
non-return valve
|
DEL7542
|
|
30. Pump
weight cap screw
|
DEL7513
|
|
30. DHLA/DRLA
pump weight cap screw
|
DEL9569
|
|
31. DRLA Top cover stud
|
DEL10630 disc
|
|
32. DRLA pump
return weight
|
DEL7636
|
|
33. Pump jet ball bearing
|
DEL6415
|
|
34. O ring
|
DEL7540
|
|
35. Throttle
stop Screw (fine thread)
|
DEL9754
|
|
36. Spindle
end cover
|
DEL7958
|
|
37 DRLA Linkage drive arm
|
DEL10230
|
|
38. DRLA Spindle step washer
|
DEL10142 disc
|
|
39. Lever NLA
|
|
|
40. Left hand throttle return spring
|
DEL10158
|
|
41. Washer
|
DEL10130
|
|
42. Nut - Spindle / grub screw
locking
|
DEL6423
|
|
43. Shaft Nut lock tab
|
6581.23
|
|
44. Spindle
washer
|
DEL7537
|
|
45. Spindle Bearing
|
DEL7490
|
|
48. Choke
return spring
|
DEL7413
|
|
49. DRLA
choke piston
|
DEL10252
|
|
50. DRLA
Choke actuating spindle / cam
|
DEL10137
|
|
51. Choke
cable bolt
|
DEL7062
|
|
52. DRLA Choke return spring
|
DEL10156
|
|
53. Choke
cable washer
|
DEL6850
|
|
54. DRLA
Choke lever
|
DEL10110
|
|
55. Choke cable nut
|
DEL6432
|
|
56. DRLA choke cover plate casting
|
DEL10231
|
|
57. DRLA Choke outer cable screw
|
DEL9174
|
|
58. DRLA Choke cable bolt
|
DEL10140
|
|
59. Washer
|
DEL7231
|
|
60. DRLA Choke cable lever
|
DEL10817
|
|
61. DRLA Choke cover casting
|
DEL10311
|
|
62. Spring washer
|
DEL5011
|
|
63. lock wasker
|
DEL4957
|
|
64. Screw
|
DEL6429
|
|
65. Nut
|
DEL2906
|
|
66. DRLA Pump jet holder
|
DEL10928
|
|
67. Pump jet holder fibre washer
|
DEL6426
|
|
68. Pump jet filter
|
DEL10748
|
|
69. O ring
|
DEL6173
|
|
70. o ring
|
DEL7571
|
|
71. DRLA Vacuum take off union
|
DEL10138
|
|
72. O ring
|
DEL8678
|
|
73. DRLA / DHLA Air bleed screw
|
DEL9926
|
|
74. DRLA Pump diaphragm spring
|
DEL9663
|
|
75. DRLA Pump diaphragm
|
DEL10182
|
|
76. DRLA Pump diaphragm cover plate
|
DEL10256
|
|
77. Spring Washer
|
DEL5011
|
|
78. Screw
|
DEL6429
|
|
79. Nut
|
DEL10315
|
|
80. Pump rod washer
|
DEL10340
|
|
81. Dellorto DRLA Pump rod spring – Long
|
DEL10332
|
|
82. DRLA Pump rod sleeve
|
DEL10331
|
|
83. Washer
|
DEL8260
|
|
84. Mixture screw spring
|
DEL9336
|
|
85. Pump rod assembly #s
79-86 ***
|
DEL10316ass
/ rod only DEL10316
|
|
86. Clip
|
|
|
87. Hexagon head mixture screw
|
DEL11068
|
|
88. DRLA Pump rod clamp
|
DEL10153
|
|
89. Pump rod clamp screw
|
DEL7667
|
|
90. DHLA/DRLA progression hole cover screw
|
DEL8857
|
|
91. Screw
|
|
|
92. Nut - Spindle / grub screw locking
|
DEL6423
|
|
93. Venturi Grub Screw
|
DEL7507
|
|
94. DRLA 36 40 45 throttle shaft Alfa Type
|
DEL10790
|
|
95. Buterfly screw
|
DEL6416
|
|
96. Right hand throttle return spring
|
DEL10157
|
|
97. Lever (NLA) check alts #108-110
|
|
|
98. DRLA Throttle lever with ball
|
DEL10229
|
|
99.
|
|
|
100.
|
|
|
101. DRLA Large banjo bolt
|
DEL12390
|
|
102. Fuel banjo fibre washer - Outer
|
DEL7663
|
|
103. Dellorto Late Large banjo Filter
|
DEL12391
|
|
105. Dellorto Large banjo fitting single
|
DELW36A
|
|
106. NLA
|
|
|
107. DRLA Twin fuel union – large bolt
|
DEL12392
|
|
108. DRLA/IDF spindle lever
|
DELCB3406
|
|
109. DRLA spindle stop lever – RHS
|
DELCB7266
|
|
110. DRLA spindle stop lever – LHS
|
DELCB7267
|
|
111. DRLA Choke blanking plate
|
DELDRLACHOKEX
|
|
112.
|
|
|
113.
|
|
|
|
|
|
Most parts are availible Special Order
|
