Carter WCFB Parts

Chokes , Floats , Kits , Rebuilt Carbs , New Carbs
Primary Pulloffs
 , Secondary Pulloffs
Part#


Price Order
Jets
WCFB-(jet size)

9.98 Pair



Quant

Rebuild Kits
Carter WCFB
Rebuild kits
Rebuild Kits

Older kits 30-70s


Enter Carb Number
Pulloffs


CUFWCFB2


$ 0

WCFB Float rear (refurbished)
57-65 rear float / there are 2 different kinds of WCFB floats also check out CUFWCFB

CUFWCFB


$ 0

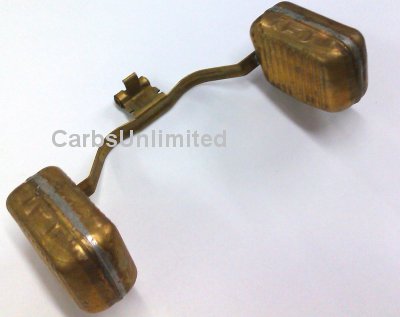

WCFB Float front and rear (refurbished)
55-56 rear float / 55-65 front float / there is 2 different kinds of WCFB floats also check out CUFWCFB2

66-37


$ 2.79

Fuel Filter Spring
Quadrajet WCFB 4Jet R-2 Varajet R1

66-15


$ 3.59

Pump Return Spring


16-11


$ 9.95

Idle Mixture Screw - Carter WCFB (Pair)
10-32 x 1.2

CUD2166


$ 13.95

AFB High Flow Needles and Seats (pair)
AFB WCFB

80-7


$ 9.95

SCREWS x 10
Quadrajet WCFB butterfly

22-124


$ 5

Bushing 5/16 (pair)
Knureled Brass - Fits 5/16th shafts (Primary)

CU22-83


$ 5

Bushing 3/8 (pair)
Knureled Brass

G622


$ 2.5

Throttle Rubber Grommet
Quadrajet 4GC

CU22-17


$ 2.5

Throttle Lever Bushing


90-155


$ 12.5

Fuel Fitting 7/8 20 to 1/2 20
Comes with gasket - 5/16 fuel line

30-53


$ 3.95

Gas Filter Stone ea.
5/8 x 3/4 long

EC-70001


$ 0

Choke Housing Cover AFB/WCFB (Arrow points Left)
59-65 Cover only no spring or spring plate

40-4


$ 7.25

Hot Air Choke Cover Cap (Plastic)
2 1/8 x 1/2 - can use spring 66-32 - No name on cover

CUD2168


$ 9.95

Choke Spring


EC-70002


$ 0

COIL-CHOKE & metal plate 57-65
WCFB and AFB - new design - For certain applications the spring will have to be removed and turned over.

EC-70002b


$ 0

COIL-CHOKE & ZINC PLATE-57-65
This will fit both WCFB and AFB. For certain applications the spring will have to be removed and turned over.

EC-70001R


$ 0

Choke Housing Cover WCFB (Arrow points Right)
57-65 WCFB 1 x 4 carb - Cover only no spring or spring plate

CUD3741


$ 4.99

Gasket - Base WCFB 4GC

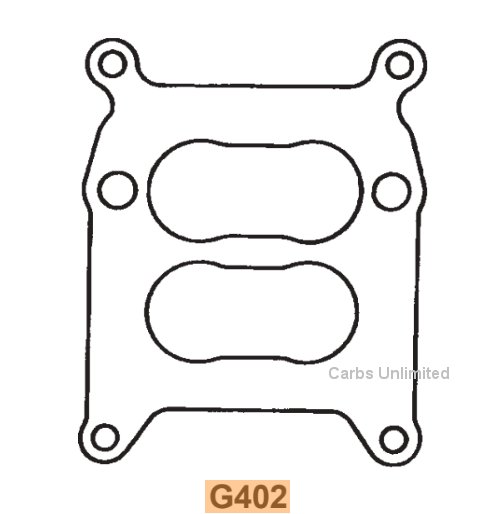

G402


$ 4.95

Flange Gasket


G1164


$ 4.95

WCFB Air Cleaner Gasket
The fit is a little tight

CUD2182


$ 2.59

Idle Mixture Screw Spring (pair)
.590 Length

G334


$ 4.95

Bowl Gasket
WCFB

G333


$ 4.95

Bowl Gasket
WCFB

G158


$ 4.95

Bowl Gasket
WCFB

CUD4674


$ 0

RETAINER-CATER CHOKE HOUSING-WITH SCREWS-58-65
WCFB and AFB

CUD4682


$ 0

WCFB Air Cleaner Gasket
Nice quality gasket very nice fit - 4.5 od

CUD15084


$ 0

WCFB choke linkage asssembly SPECIAL ORDER
fits main carb of 57-61 Dual 4bbl carb setup

G112


$ 0.99

Fuel strainer Gasket
WCFB

G335


$ 0

Gasket WCFB Base


CUD4621


$ 21.95

WCFB Accelerater pump
5/8cup x 2.040 tall - WCFB

CUD4659


$ 18.95

WCFB Leather Accelerater pump
11/16 (.68 dia) cup x 2.4.11 tall - WCFB - complete assembly

CUD4660


$ 25.63

WCFB Leather Accelerater pump
11/16 (.68 dia) cup x 2.250 tall - WCFB - complete assembly

CUD4661


$ 31.85

WCFB / AFB Leather Accelerater pump
23/32 (.71 dia) cup x 2.440 tall - WCFB - complete assembly

CUD4662


$ 37.85

WCFB / AFB Leather Accelerater pump
13/16 (.81 dia) cup x 2.290 tall - WCFB - complete assembly

CUD4663


$ 32.85

WCFB / AFB Leather Accelerater pump
11/16 (.68 dia) cup x 2.290 tall - WCFB - no spring or clip

CUD4664


$ 24.85

WCFB Leather Accelerater pump
5/8 (.65 dia) cup x 2.235 tall - WCFB - no spring or clip

CUD4665


$ 19.95

WCFB Leather Accelerater pump
11/16 (.68 dia) cup x 2.365 tall - WCFB - no spring or clip

CUD4666


$ 38.85

WCFB / AFB Leather Accelerater pump
3/4 (.75 dia) cup x 2.400 tall - WCFB - no spring or clip

CUD4667


$ 2.95

Acc Pump Spring Retainer
WCFB Rochester H HV Carter AFB AVS YF WCD WGD

CUD4668


$ 2.95

Acc Pump Delay Spring
WCFB AFB AVS

G436


$ 0.75

Delayer Plate Gasket


G1266


$ 0

Gasket choke to body
ID .215 OD .320

CUD9064


$ 5.43

Brass Adaptor Fitting 1/8 nipple
1/8 pipe to 1/8 pipe

CC2031


$ 0

WCFB overflow vent front and rear (pair)


CC2029


$ 189.95

WCFB choke setup with thermostat (special order)
Comes with choke housing shaft flap and thermostat

CUD35488


$ 14.95

Idle Mixture Screw - (Pair)
Idle Mixture Screw - (Pair)

CUD5008


$ 0.99

Gasket - secondary housing


CUD5500


$ 0

53-65 Metering Rods Spring / WCFB
Used

CUD5501


$ 0

55-65 Lockout Spring / Carter WCFB LH
55-65 Lockout Spring / Carter WCFB LH

CUD9053


$ 5.99

Fitting Brass 1/2-20 inverted flare 1/8 pipe


G373


$ 4.95

Flange Gasket


G229


$ 3.99

Base Gasket
Gasket 1 1/16 thick

CUD15248a


$ 0

WCFB choke linkage asssembly Special Order
fits 57-61 Single 4bbl carb setup

CUD5800


$ 12.5

Fuel Fitting 7/8 20 to 5/8 18
Comes with gasket - Uses 3/8 fuel line

G156


$ 1.95

Dust Cover Gasket
WCFB

G419


$ 1.95

Dust Cover Gasket
WCFB

G205


$ 0

Gasket - secondary housing


G384


$ 0.99

Gasket - housing


G386


$ 1.75

Scondary Cover Gasket


 Studs and clips Fitting and Accessorys

24 x 7 Online ordering or Email

Fuel lines and filters


Carb Studs


Fuel Fittings

Studs


More Clips



Plugs


Carter WCFB
Parts Page
 More Parts

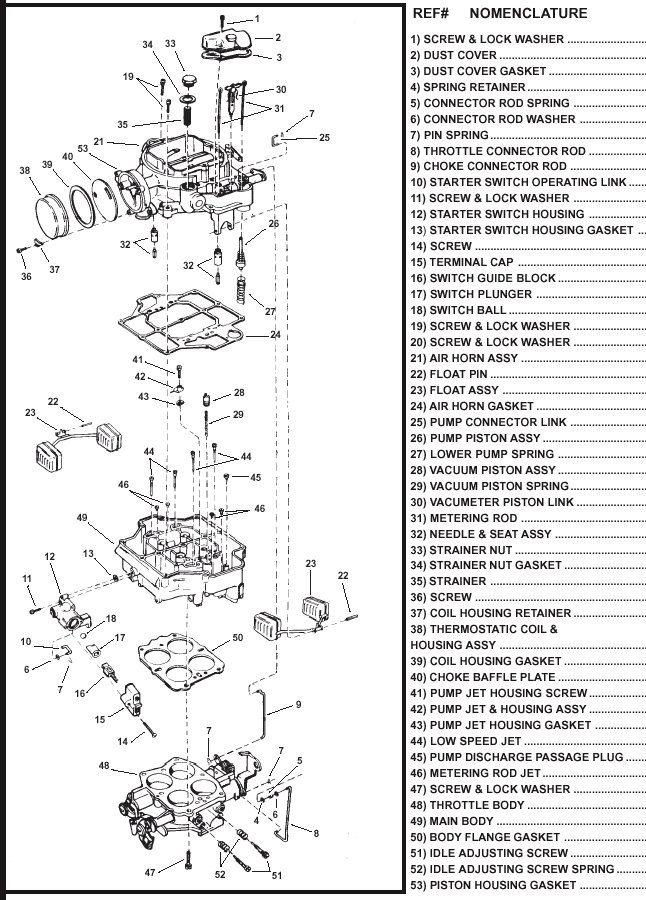

Carter WCFB Diagram
