| Quadrajet Parts Page | M4MC,M4ME Heat or Electric choke Model |
| Electronic Computerized Model | |

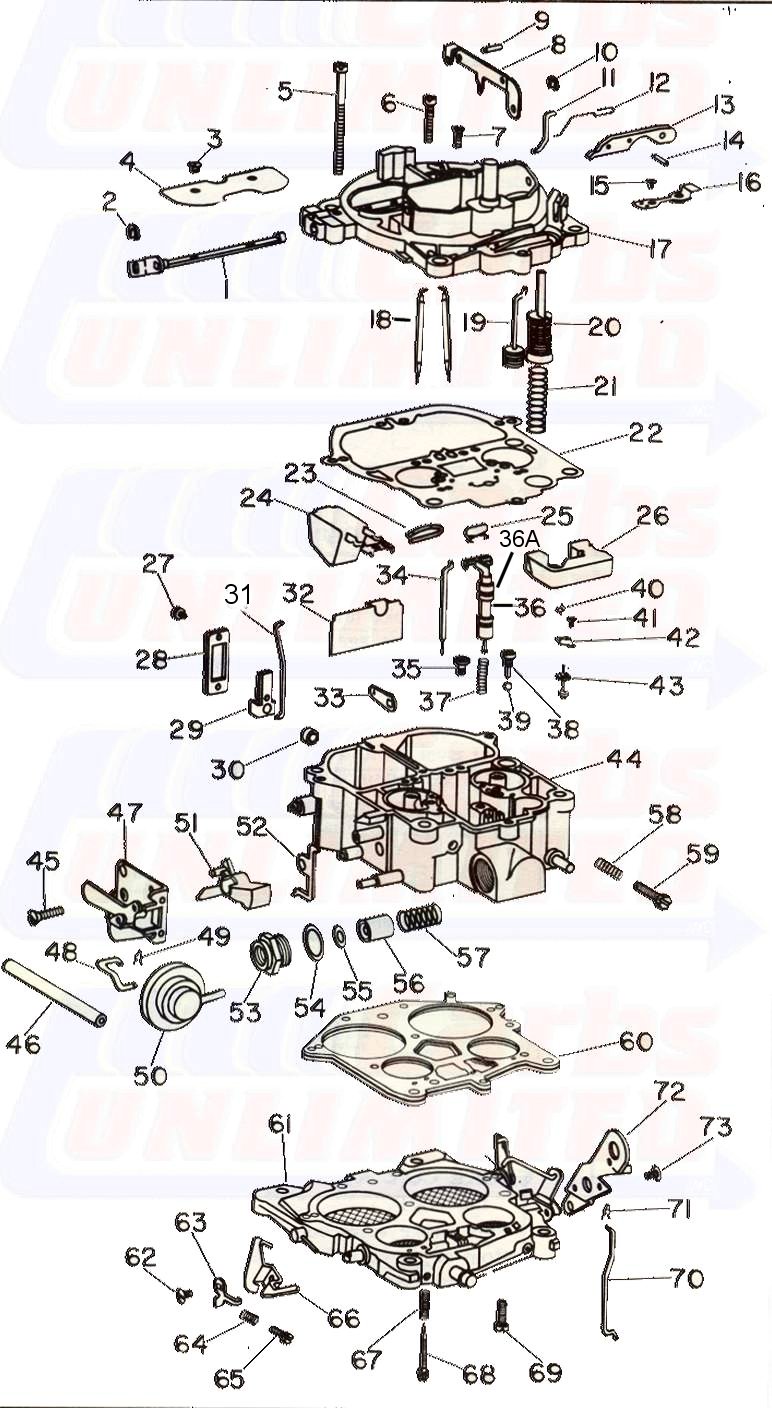

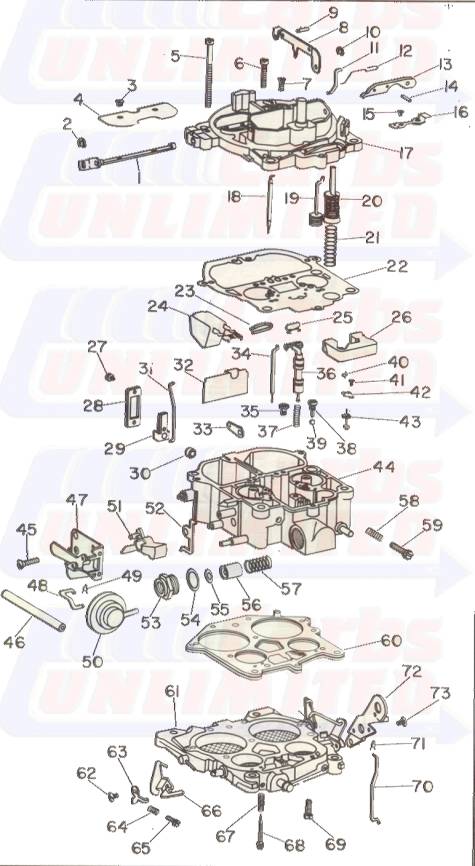

| Description | 4MV , 4MC Diagram |
| 1- Choke Shaft and Lever Assy. |
 |
| 2- Clip - Choke Rod(Horseshoe) | |
| 3- Screw - Choke Valve | |
| 4- Choke Valve | |
| 5- Screw - Air Horn(4) | |
| 6- Screw - Air Horn(3) | |
| 7- Screw - Air Horn(2) | |
| 8- Lever - Dashpot Actuating | |
| 9- Roll Pin - Dashpot | |
| 10- Clip - Rod(Horseshoe) | |
| 11- Rod - Air Valve | |
| 12- Lever - Idle Vent Valve | |
| 13- Lever - Pump Actuating | |
| 14- Roll Pin - Pump Lever | |
| 15- Screw - Idle Vent Valve | |
| 16- Valve - Idle Vent | |
| 17- Air Horn Assy. | |
| 18- Metering Rod - Secondary(2) | |
| 19- Dashpot Assy. | |
| 20- Pump Assy. | |
| 21- Spring - Pump Return | |
| 22- Gasket - Air Horn | |
| 23- Hinge Pin - Float Assy. | |
| 24- Float Assy. | |
| 25- Spring - Metering Rod - Primary | |
| 26- Insert - Float Bowl | |
| 27- Screw - Cover Attaching | |
| 28- Cover - Idle Compensator | |
| 29- Idle Compensator Assy. | |
| 30- Gasket - Idle Compensator | |
| 31- Rod - Choke | |
| 32- Baffle - Float Bowl(Right & Left) | |
| 33- Lever - Intermediate Choke | |
| 34- Metering Rod - Primary(2) | |
| 35- Jet - Primary | |
| 36- Power Piston Assy. - Primary | |
| 37- Spring - Power Piston | |
| 38- Retainer - Pump Disgharge ball | |
| 39- Ball - Pump Discharge | |
| 40- Pull Clip - Float Needle | |
| 41- Screw - Retainer Attacing. | |
| 42- Retainer - Float Needle Assy. | |
| 43- Float Needle & Diaphragm Assy. | |
| 44- Float Bowl Assy. | |
| 45- Screw - Control Attaching | |
| 46- Hose - Vacuum | |
| 47- Vacuum Break Control Bracket Assy. | |
| 48- Rod - Vacuum Break | |
| 49- Clip - Rod | |
| 50- Pulloffs | |
| 51- Cam - Fast Idle | |
| 52- Lever - Secondary Lock-Out | |
| 53- Filter Nut - Fuel Inlet | |
| 54- Gasket - Filter Nut | |
| 55- Gasket Fuel Filter | |
| 56- Filter - Fuel Inlet | |
| 57- Spring - Fuel Filter | |
| 58- Spring - Idle Stop Screw | |
| 59- Screw - Idle Stop | |
| 60- Gasket - Throttle Body | |
| 61- Throttle Body Assy. | |
| 62- Screw - Cam and Fast Idle Levers | |
| 63- Fast Idle Lever | |
| 64- Spring - Fast Idle Screw | |
| 65- Screw - Fast Idle Adjusting | |
| 66- Cam Lever | |
| 67- Spring - Idle Needle(2) | |
| 68- Idle Needle(2) | |
| 69- Screw - Throttle Body(3) | |
| 70- Rod - Pump | |
| 71- Clip - Pump Rod(hairpin) | |
| 72- Throttle Lever - Primary | |
| 73- Screw Lever Attaching | |
| Most All Parts unavailable New are availible Used or refurbished Call 253-833-4106 for quote | |
